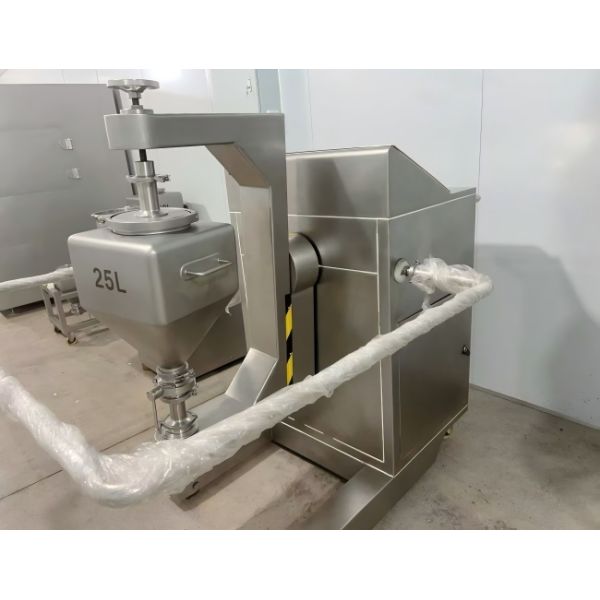

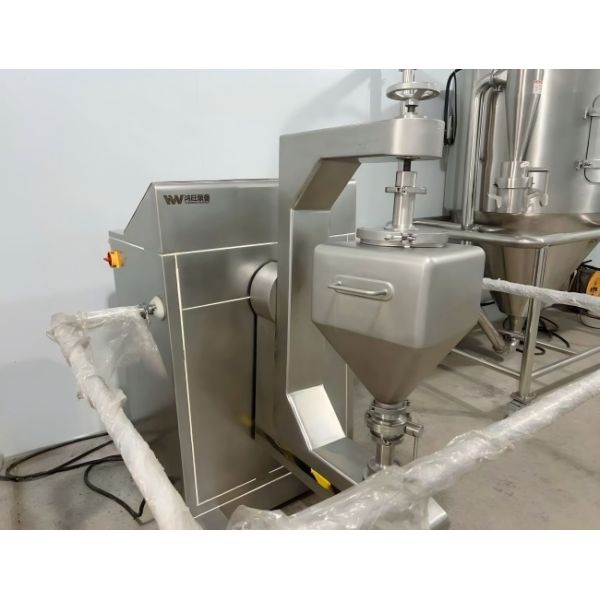

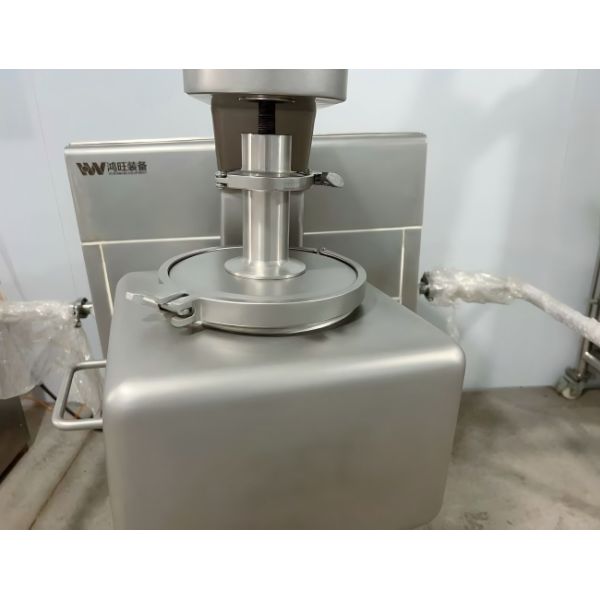

Mobile Laboratory Hopper Mixer with Interchangeable Hoppers
Description:
The equipment uses a motor to drive the hopper to rotate horizontally. The powder/particles inside the hopper undergo convection, shearing, and diffusion under the influence of gravity and centrifugal force, achieving uniform mixing of different components. Its unique hopper structure and speed control can simulate the motion trajectory of an industrial mixer, ensuring that pilot-scale process data can be directly scaled up.
Multiple raw materials with different proportions and components undergo cyclical and complex motion within the completely sealed hopper cavity. This creates a continuous, high-intensity dynamic process of tumbling convection, diffusion, penetration, and convergence/contraction between the materials, allowing them to fully intermingle and blend, ultimately achieving a highly uniform and stable material mixing effect.
Specification:
|
Model
|
HSD-5
|
HSD-10
|
HSD-15
|
HSD-20
|
HSD-30
|
HSD-50
|
HSD-100
|
HSD-150
|
|
Bin volume(L)
|
5
|
10
|
15
|
20
|
30
|
50
|
100
|
150
|
|
Net load(kg)
|
2.5
|
5
|
7.5
|
10
|
15
|
25
|
50
|
75
|
|
Mixing rotation speed(rpm)
|
3-30
|
3-30
|
3-30
|
3-30
|
3-25
|
3-25
|
3-20
|
3-20
|
|
Total power(kw)
|
0.37
|
0.37
|
0.37
|
0.37
|
0.55
|
0.55
|
0.75
|
1.1
|
|
Machine weight(kg)
|
150
|
160
|
170
|
180
|
190
|
200
|
250
|
280
|
Application:
This machine is suitable for mixing and proportioning experiments between various dry powders, granules, and powders of the same granule. It allows for precise formulation adjustments and process exploration, quickly determining optimal production parameters and providing a reliable basis for subsequent mass production process finalization. The entire machine adopts an advanced mechatronics integrated design, featuring a precise structure and stable operation, making it an ideal specialized experimental device for formulation development and process optimization in scientific research laboratories.
Feature Advantage:
1. The motion trajectory is consistent with industrial models, allowing for direct scaling up of small-scale test data and avoiding process deviations.
2. Low rotation height, smooth operation, reliable performance, and easy operation.
3. Compact structure, movable with casters, small footprint, suitable for limited laboratory spaces.
4. Both the inner and outer walls of the drum are mirror-polished, eliminating dead corners, facilitating material discharge, easy cleaning, and preventing cross-contamination.
