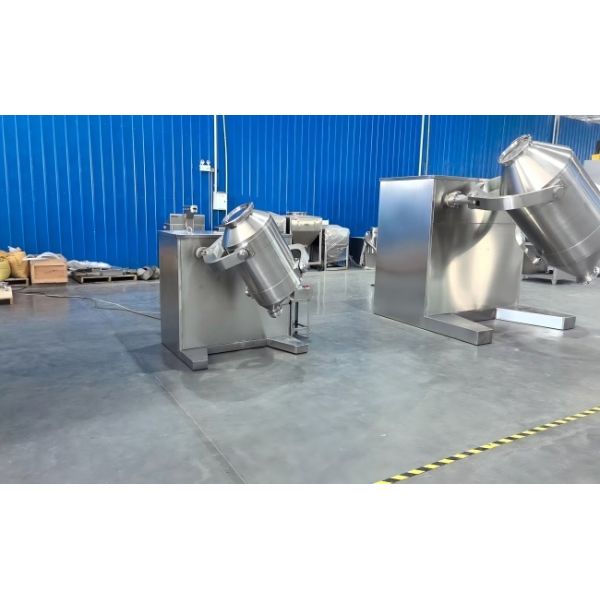

GMP Standard 3D Motion Mixer Industrial Multi Directional Mixing Machine
Description:
The mixing barrel is supported by the driving and driven shafts which are crossed in space and also vertical to each other, and are respectivly connected by Y-type universal joints, so that the mixing bartrel makes unique translation, turning, over motions in Three-dimensional space, thereby speeds up the flow and diffusion of the materials bein mixed, while avoids the specific graviy segregation of materials due to the action of centrifugal force in an ordinary mixer, and ensures the materials to reach an ideal mixing within a short time.
The SYH three-dimensional motion mixer's barrel can simultaneously perform three combined motions: rotation, revolution, and oscillation. This causes strong convection, shearing, and diffusion of the powder/particles within the barrel in a multi-directional space, breaking the segregation of the material and achieving uniform mixing without dead angles.
Specification:
|
Model
|
SYH-5
|
SYH-20
|
SYH-50
|
SYH-100
|
SYH-200
|
SYH-400
|
SYH-600
|
|
Volume of mixing barrel(L)
|
5
|
20
|
50
|
100
|
200
|
400
|
600
|
|
Max.Charge volume(L)
|
4
|
17
|
40
|
85
|
170
|
340
|
500
|
|
Max.Charge weight(kg)
|
4
|
15
|
40
|
80
|
100
|
200
|
300
|
|
Main shaft speed(rpm)
|
3-20
|
3-20
|
3-20
|
3-15
|
3-15
|
3-15
|
3-10
|
|
Motor power(kw)
|
0.75
|
0.75
|
1.1
|
2.2
|
3
|
4
|
5.5
|
|
Weight of whole machine(kg)
|
90
|
100
|
200
|
650
|
900
|
1350
|
1550
|
|
Overall dimension(mm)
|
900×700
×650
|
970×780
×700
|
1200×1100
×1200
|
1360×1500
×1530
|
1800×1600
×1700
|
2200×1900
×1850
|
2400×2100
×2050
|
Application:
The three-dimensional motion mixer is a novel material mixer widely used in pharmaceutical, chemical, food, light industry, and research institutions. Widely used in pharmaceutical, food, chemical and other industries, ideal for blending various powder and granular materials. This machine can very uniformly mix free-flowing powdery or granular materials, achieving optimal quality after mixing.
Feature Advantage:
1. Excellent mixing effect even for materials with poor flowability, easy agglomeration, and large density differences, without damaging the material's shape.
2. Low noise and low vibration, suitable for long-term continuous production, with a long equipment service life.
3. Materials are mixed in a closed environment, preventing pollution to the working environment.
4. The multi-directional motion mixer features a uniquely designed mixing drum with a finely polished inner wall, eliminating dead corners.
