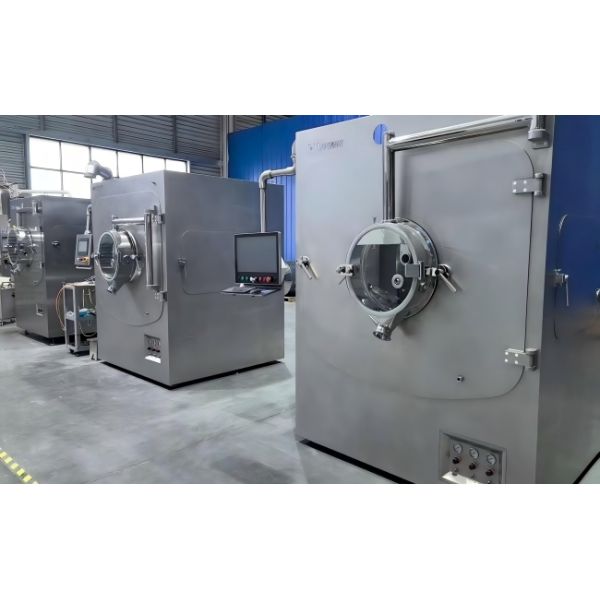

Pharmaceutical Tablet Film Coating Equipment With PLC Control
Description:
The working principle of a production-type coating machine is as follows: Tablets, pills, or other materials are added to the coating pan. After the equipment starts, the coating pan rotates continuously at a set speed, causing the materials to constantly tumble, mix, and exchange positions within the pan. Simultaneously, the spray gun system evenly atomizes the prepared coating solution and sprays it onto the material surface. A hot air system introduces clean, hot air into the pan, causing the moisture or solvent in the coating solution to evaporate rapidly, gradually forming a uniform, smooth, and dense coating film on the material surface.
Throughout the coating process, the exhaust system promptly removes moisture and dust, maintaining a dry environment inside the pan. By controlling parameters such as pan rotation speed, inlet air temperature, airflow, spray volume, and atomization pressure, a uniform coating thickness and glossy appearance can be ensured, while reducing issues such as tablet sticking, uneven tablet formation, and color differences. This makes it suitable for large-scale continuous production.The machine is suitable for batch continuous production, is easy to operate, runs smoothly, and can adjust the speed, temperature, air volume and liquid spray volume according to different process requirements to meet the production requirements of different specifications of products.
Application:
Production-type coating machines are mainly used for batch coating of tablets, pills, candies, health products, and other products. They can perform processes such as film coating, sugar coating, moisture-proof coating, and flavor-masking coating. The equipment is made of stainless steel, with a robust structure and clean appearance, meeting the hygiene and cleanliness requirements of pharmaceutical production.
Specification:
|
Model
|
Dimensions
|
Max capacity
|
Drum speed
|
Host power
|
Blower power
|
Exhaust fan power
|
Weight
|
Hot air cabinet weight
|
Fume cabinet weight
|
|
|
L(mm)
|
B(mm)
|
H(mm)
|
L/Drum
|
r/min
|
(kw)
|
(kw)
|
(kw)
|
(kw)
|
(kg)
|
(kg)
|
|
BGX75
|
1300
|
1300
|
2000
|
75
|
2-20
|
1.5
|
1.5
|
4
|
1000
|
800
|
650
|
Feature Advantage:
1. The combination of rotating pot, spray gun atomization, and hot air drying creates a uniform and smooth coating layer on the surface of tablets or pills.
2. The equipment has a large capacity and stable operation, making it suitable for continuous or large-scale production in pharmaceutical, health product, and food factories.
3. Parts in contact with materials are typically made of stainless steel with a smooth surface, facilitating cleaning and maintenance and meeting pharmaceutical hygiene requirements.
4. The coating liquid is finely atomized, resulting in uniform spray coverage and reducing problems such as tablet sticking, color difference, and incomplete coating.
5. The hot air system quickly removes moisture or solvents, increasing drying speed and shortening coating time.
6. Parameters such as pot rotation speed, inlet air temperature, air volume, spray volume, and atomization pressure can be adjusted according to different product process requirements.
7. The equipment is generally equipped with a control panel or touch screen, providing intuitive operation and facilitating production personnel to control and record process parameters.
