Electric Powder Butterfly Valve For Material Conveying And Feeding Systems
Description:
The pneumatic/electric powder butterfly valve is a sanitary flow control device specifically designed for the conveying, batching, and diversion of powders, granules, and bulk materials. It is widely used in hopper, pipeline, and storage systems in the pharmaceutical, food, chemical, and fine chemical industries to achieve precise and efficient material control.
The valve body is made of high-quality stainless steel with smooth, polished inner and outer surfaces, meeting GMP and food-grade standards to ensure no material contamination and facilitating cleaning and maintenance. The valve plate can rotate quickly to open, close, or regulate the flow of materials, offering flexible operation and excellent sealing performance to effectively prevent dust leakage.This butterfly valve supports pneumatic or electric actuation and can be integrated with automated control systems for remote control and high-efficiency production. Its compact structure and easy installation make it an indispensable key control component in modern powder conveying production lines.

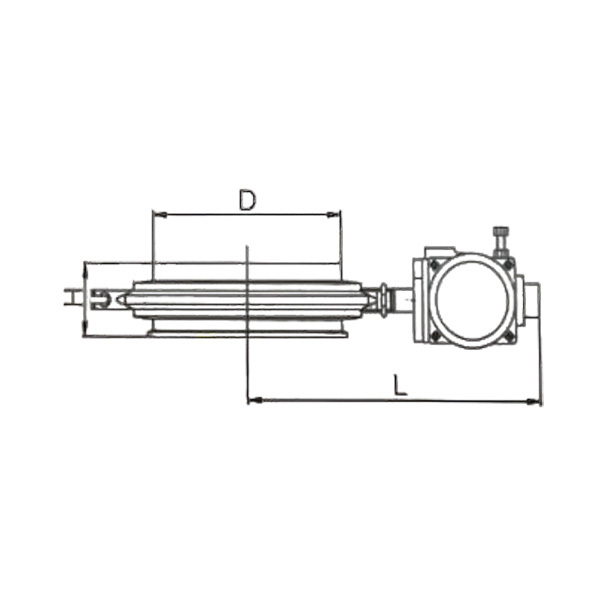

Specification:
|
Model
|
D
|
H
|
L
|
|
QDF150
|
150
|
90
|
280
|
|
QDF200
|
200
|
90
|
347
|
|
QDF250
|
250
|
90
|
388
|
Feature Advantage:
1. Pneumatic or electric operation, supporting automated control.
2. Rapid valve plate rotation, excellent sealing performance.
3. Efficient control of the flow rate of powders, granules, and bulk materials.
4. Compact structure, easy installation, low maintenance cost, and prevents dust leakage.
